Advanced Yield Line Analysis Software for Reinforced Concrete Slabs

Analyze any slab geometry, support conditions and loading arrangements

YieldLine program

Worked Examples using YieldLine v4.1 - For Windows 7/8/10/11

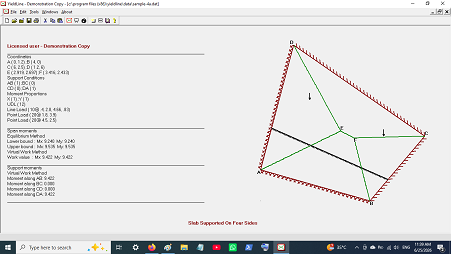

1. Irregular Slab Supported on Four Sides, with UDL, Line and Point loads
slab supported on four sides

Commercial and Academic Licenses are available NOW !

Download Working Demo

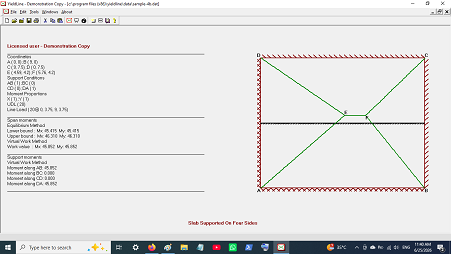

2. Regular Slab Supported on Four Sides with UDL and Line load.

[Ref: 'Practical Yield Line Design' By Gerard Kennedy & Charles Goodchild

Page 35, Example 2A Published by https://www.concretecentre.com]

slab supported on four sides

Supports: Windows 7/8/10/11

Windows logo

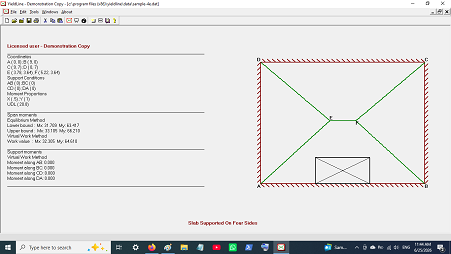

3. Regular Slab Supported on Four Sides with UDL and a Hole

[Ref: 'Practical Yield Line Design' By Gerard Kennedy & Charles Goodchild

Page 146, Example 4G Published by https://www.concretecentre.com]

slab supported on four sides

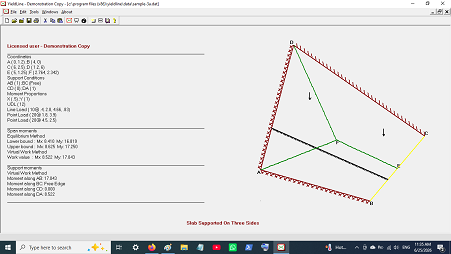

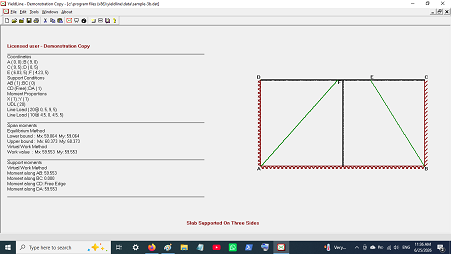

4. Regular Slab Supported on three Sides with UDL, and two Line loads

[Ref: 'Practical Yield Line Design' By Gerard Kennedy & Charles Goodchild

Page 79, Example 3E Published by https://www.concretecentre.com]

slab supported on three sides
5. Irregular Slab Supported on three Sides with UDL, Point and Line load
slab supported on three sides

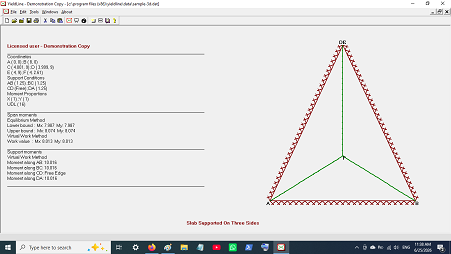

6. A special case of Triangular slab with UDL load
slab supported on three sides
